| Suitable interface | Standard touch trigger interface e.g. PI4-2 |
|---|---|
| Sensor Directions | ±X, ±Y, +Z |
| Unidirectional Repeatability | 0.75 μm |
| Pretravel variation (XY plane) | ±1.5 μm |
| Trigger force (fixed) | 12 g |
| Stylus mount | M3 |
| Probe status | LED |
| Probe signal connection | 5 pin Din |
| Overtravel protection | Z 5 mm XY ±20 degrees |

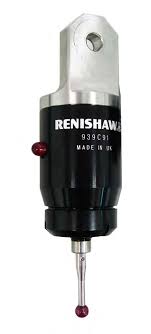

MCP Manual Probe (A-1311-0096)
PL1T cable (A-1016-0004)
M3 Φ1x21mm Stainless Steel Stylus (A-5000-3551)
M3 Φ2x21mm Stainless Steel Stylus (A-5000-3552)
M3 Φ3x21mm Stainless Steel Stylus (A-5000-3553)
 |
