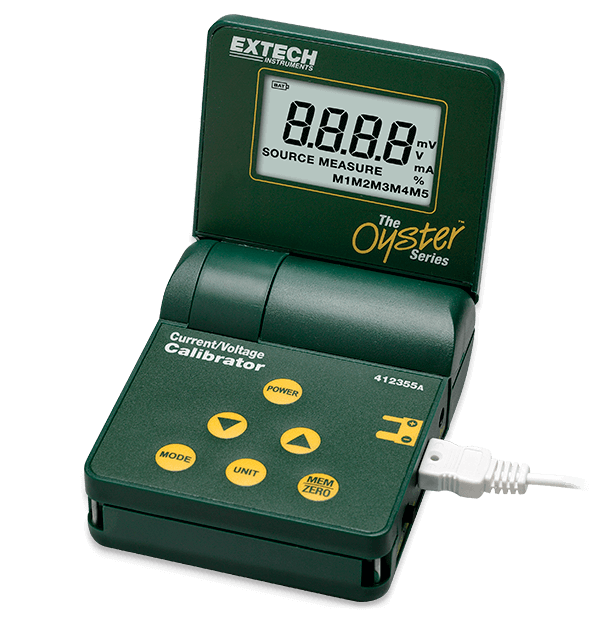

412355A is a current and voltage calibrator and meter. With a super wide LCD that shows measurements in mA, as a percent of the 0 to 24mA range, or as mV in voltage ranges, this precision source calibrates process equipment and measures DC process signals from 0 to 24mA. Additional features include a Touch Keypad and five saved calibration values for quick calibrations. Comes with a 9V battery, calibration cable with spade lug connectors, carrying case, neck strap, and an AC power adapter.
| Source | Output 0 to 24mA current for loads up to 1000 ohms Output 0 to 20V (412355A only) |
|
|---|---|---|
| Measure | 0 to 50mA current signal 0 to 50mA current signal |
|
| Power/Measure | Provides power (24VDC) to loop & measures current (412300A only) | |
| Input/Output | Ranges and Display | Resolution |
| -25.0 to 125.0% (representing 0 to 24mA)) | 0.1% | |
| 0 to 19.99mA | 0.01mA | |
| 0 to 24.0mA | 0.1mA | |
| 0 to 1999mV | 1mV | |
| 0 to 20.00V | 10mV | |
| Accuracy | 0.075% ±1 digit | |
| Power | 9V battery or AC adaptor | |
| Dims/Wt | 3.8 x 4.2 x 1.8" (96 x 108 x 45mm) folded/ 12oz (340g) |
