Squareness Checkmaster

Details: Category: Squareness Checkmaster

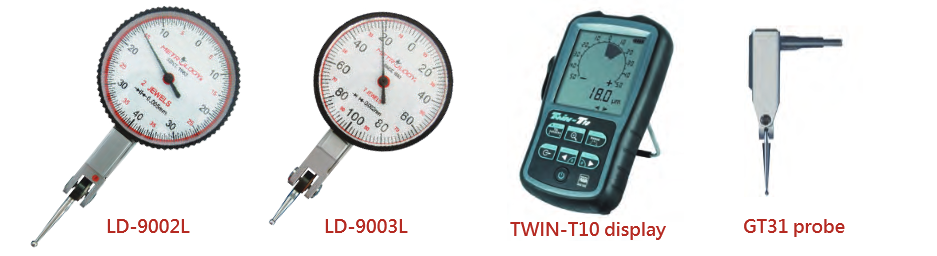

LD-9002L, LD-9003L, LD-9003LROptional accessories

Model No.	Measuring Range (mm)	Graduation (mm)	Remark
LD-9002L	0-0.8	0.005	Level type indicator Φ38mm Large bezel Φ2mm Hardened steel insert
LD-9003L	0-0.2	0.002
LD-9002LR	0-0.8	0.005	Level type indicator Φ38mm Large bezel Φ2mm Ruby insert
LD-9003LR	0-0.2	0.002	Level type indicator Φ38mm Large bezel Φ2mm Ruby insert

*Swiss made 0.1 um electronic length measuring equipment (GT31 level-type probe + TWIN-T10 display)

Details: Category: Squareness Checkmaster

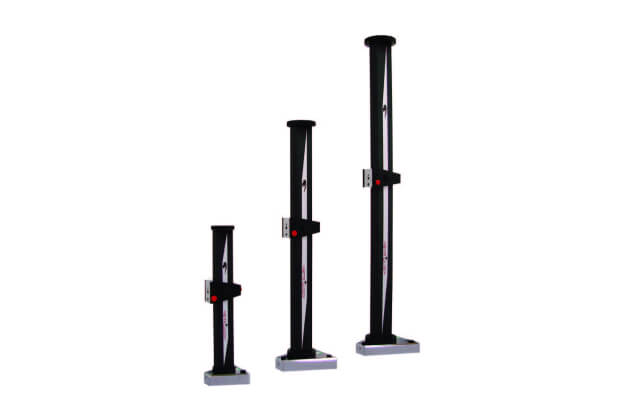

SCM-G300, SCM-G600, SCM-G900Free-fall series

Measuring functions：For measuring squareness, straightness, parallelism of all kinds of precision workpieces, machine parts, gages. Dimension transfer for precision comparisons of measurements.p>

Measuring method Fine adjustable free-fall measurement, non-backlash slide motion.

Materials
Master: DIN 00 grade black granite straight edge master
Base: lapped hardened chrome steel
Slide: special aluminum & lapped hardened chrome steel

Model No.	Measuring Range(mm)	Max.error(mm)
SCM-G300	300	0.003
SCM-G600	600	0.004
SCM-G900	900	0.005

*Custom specifications available as per client’s request

Optional accessories

Free-fall series
