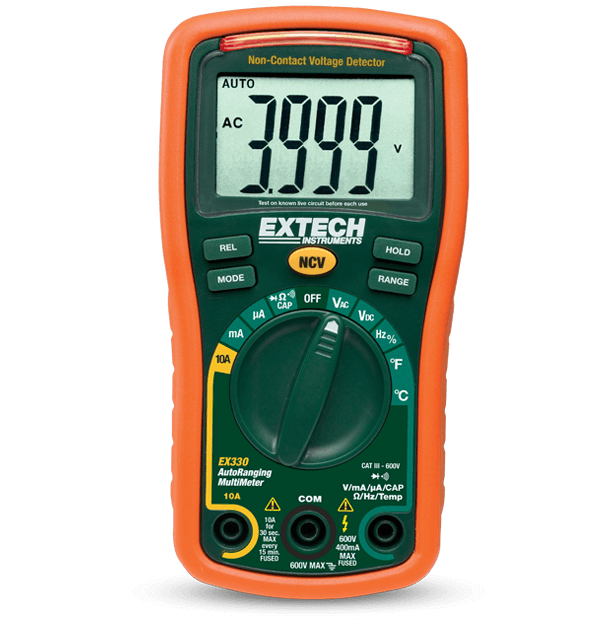

The EX330 is a small autoranging multimeter with an extra large 4000 count display and an integrated non-contact AC voltage detector. Advanced functions include frequency, duty cycle, capacitance and temperature, diode testing, and continuity. The rubber holster protects the meter. Includes test leads, a Type K temperature probe, two AAA batteries, and a tilt stand..
| AC Current | 0.1µA to 10A |
|---|---|
| AC Voltage | 0.1mV to 600V |
| Capacitance | 0.001nF to 200µF |
| Continuity | Yes |
| DC Current | 0.1µA to 10A |
| DC Voltage | 0.1mV to 600V |
| Diode Test | Yes |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | 0.001Hz to 10MHz |
| Non-Contact Voltage (NCV) Detector | 100 to 600VAC |
| Resistance | 0.1Ω to 40MΩ |
| Temperature (Type K) Max Resolution | -4 to 1382°F (-20 to 750°C) |
| Certifications | CE, UL |
| Dimensions | 5.7 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Display | 4000-count segment LCD |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 1000V, CATIII - 600V |
| Warranty | 2 years |
| Weight | 9oz (260g) |
