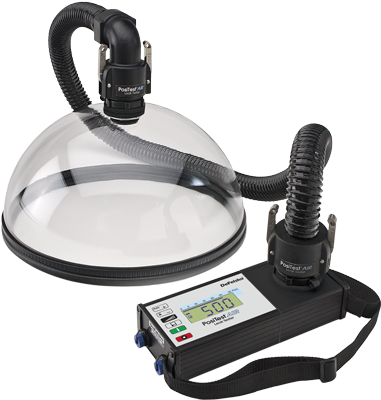

Air and water leaks can be detected quickly and readily in building envelopes and rigid air barrier systems. Ideal for checking penetrations (fasteners, masonry ties, etc.) and the continuity of joints and seams in rigid air barrier systems.

For use with...

Single and two-ply membranes

Liquid applied membranes

Sprayed Polyurethane Foam (SPF)

Boardstock

Metal Liners

Exterior Insulation and Finish Systems (EIFS)

EPDM roofing systems

Waterproofing and more

Conforms to ASTM E1186

Specifications

Pressure Differential Range	100 – 900 Pa
Rate of Depressurization	5 – 30 Pa/Sec
Test Chamber Size	Ø16" (40 cm) Base
Resolution	1 Pa
Accuracy	± (10% + 10 Pa)
Carry Case Dimension	38 cm (15") × 48.3 cm Ø (19")
Weight	3.8 kg / 8.5 lbs.
Shipping Weight	6.7 kg / 14.7 lbs.
