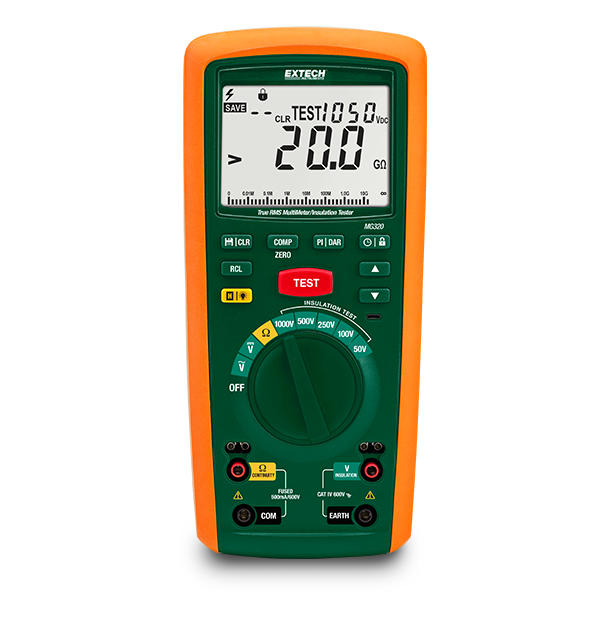

This product combines a portable insulation tester (20GΩ/1000V) and a true RMS multimeter. The insulation tester features PI/DAR modes, a programmable timer, and a comparator for bespoke test combinations and speedy results. AC/DC Voltage, Resistance, and Continuity Testing are among the multimeter's capabilities. Manually store and recall up to 99 readings. Built with a sturdy shell and a huge backlit 6,000 count LCD panel with an analog bargraph. Comes with test leads, an alligator clip, 6 AA batteries, and a protective case.
| AC Voltage | 600V |
|---|---|
| AC Voltage Basic Accuracy | ±2% |
| AC Voltage Max Resolution | 0.1V |
| Continuity | Yes |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±2% |
| DC Voltage Max Resolution | 0.1V |
| Insulation Resistance | 50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ, 1GΩ, 10GΩ, 20GΩ |
| Insulation Resistance Basic Accuracy | ±3% |
| Insulation Resistance Max Resolution | 0.01MΩ |
| Insulation Test Voltage | 50V, 100V, 250V, 500V, 1000V |
| Insulation Test Voltage Basic Accuracy | 0 to 10% |
| Resistance | 20kΩ |
| Resistance Max Resolution | 0.01Ω |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 8.9 × 4.1 × 2.3" (225 × 103 × 59mm) |
| Power | 6 × AA (1.5V) batteries |
| Safety Category | CATIV - 600V |
| Warranty | 2 years |
| Weight | 1.5lbs (0.7kg) |
