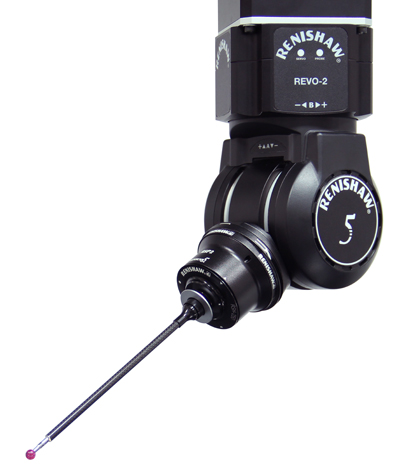

690% improvement in throughput Valve seat and guide measurement is one of the toughest measurement tasks in an automo�ve cylinder block. Using a helical scan, the REVO® head gathers thousands of data points from which the height, diameter, seat width and form can be determined.
- Details
- Category: Renishaw probing systems for coordinate measuring machines
The probe head and CMM synchronized motion technology developed by the multi-award-winning REVO system can greatly reduce the dynamic error of the mechanism itself caused by CMM high-speed measurement (UCC T5)
The functional design at any angle ensures the best results and reduces the replacement of styli
It can be automatically adjusted according to the workpiece coordinate system to avoid stylus collision and reduce the need for precision fixtures
The unique design of probe collision allows the work of picking points to be completed by the probe head, without relying entirely on the movement of the CMM, and picking points faster and with better accuracy and reproducibility (UCC T5)
The movement and simultaneous movement of 5-axis control can reduce the space required for the angle of the probe and increase the measurement speed, resulting in a three-fold improvement in the work efficiency of the CMM (UCC T5)
Integrate the industry standard anti-collision protection magnetic TP20 trigger probe, which can be directly equipped with a series of probe modules, stylus, extension rods and exchange racks to meet the needs of application measurement
| Rotation angle of probe head | A axis: -115° to +115° B axis: ∞ infinite |
|---|---|
| Angle resolution of probe head: | 0.4um/RAD (0.08 arc second) |
| Fast turning angle: | 3 turns/sec (1281mm/sec, with 10mm long stylus) |
| Maximum touch speed of probe: | 50mm/sec (UCC T5) |
| Internal bearing of probe head: | mechanical type (no air source required) |
- Details
- Category: Renishaw probing systems for coordinate measuring machines
The PH10M and PH10MQ are versatile motorised indexing heads that incorporate the Renishaw autojoint with multiwire capability.
This allows PH10M/MQ heads to carry long extension bars and sophisticated multiwired probes such as SP25M and TP7M. There are 720 repeatable positions, set at 7.5° increments to provide probe orientation.
The highly repeatable, kinematic autojoint allows rapid probe or extension bar changing without the need for requalification.
The PH10MQ is a variant that allows the motorised head to be attached directly to the quill with the ‘cube’ of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the swivel protruding from the quill
The AM1 and AM2 adjustment modules permit correction of alignment of the probe head to machine and are fitted between the probe head and the shank/quill of the machine
SP25M features and benefits:
- Details
- Category: Renishaw probing systems for coordinate measuring machines
The PH10T is a motorised indexing head that mounts and re-orientates the probe. The PH10T can be repeatably orientated to any one of 720 positions
All M8 thread probes can be fitted directly onto the mount of the PH10T. The PH10T is operated by the PHC10-2 and is compatible with other Renishaw M8 threaded products
The AM1 adjustment module permits the correction of the alignment of the probe head to the machine and is fitted between the head and the shank.
PH10T features and benefits
 |
