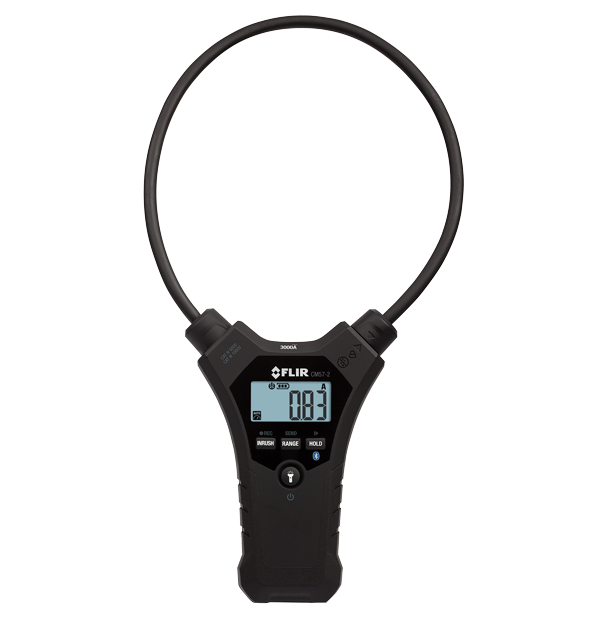

The FLIR CM57-2 is a versatile clamp meter intended for demanding current measurements. The CM57-2's 18-inch (45.72 cm) flexible coil clamp enables you to take measurements in small spaces, making it suitable for multiple-conductor measurements and double-wrap requirements. The meter also has twin LED work lights for improved visibility, and the AC current ranges from 30.00 A to 3000 A. Using the METERLiNK® software, you can stream live data from the CM57-2 to your mobile device over Bluetooth, graphically compare log files, modify alert thresholds, produce reports, and instantaneously share readings with team members.
| AC Current Bandwidth | 45–500 Hz (sine wave) |
|---|---|
| AC Current Ranges and Resolution | 30.00 A, 300.0 A, 3000 A |
| AC Response | True RMS |
| Basic AC current accuracy (of reading) | ±3.0% + 5 digits |
| Display Rate | 2 times per second |
| Flex Coil Length | 45 cm (18 in) |
| Flex Coil Tip Diameter | 13 mm (0.5 in) |
| Inrush Current | Minimum 0.5 A, 100 mS |
| Max Conductor Diameter | 12 cm (4.7 in) |
| Maximum AC current | 3000 A AC |
| Maximum resolution | 0.01 A |
| Measurement Rate | 1.5 samples per second, nominal |
| Positional Error [distance from optimum] | 35 mm (1.4 in) ±1.0%, 50 mm (2.0 in) ±1.5%, 60 mm (2.4 in) ±2.0% |
| Bluetooth range max | 10 m (32 ft) |
| Data Record Mode | 20,000 points; 1 minute sample rate |
| Wireless ID# max | Up to 20 |
| Display | 3000-count LCD with backlight and multi‐function indicators |
| Auto Power Off | Approximately 10 minutes |
| Battery life | 100 hours with alkaline batteries (calculated) |
| Battery type | 2 x 1.5 V AAA |
| Coil Bend Radius | 80 mm (3.1 in) |
| Coil Diameter | 7.5 mm (0.3 in) |
| Display Indications | Progressive low battery, over range, hold |
| Maximum Conductor Diameter | 12 cm (4.7 in) |
| Size [L × W × H] | 330 mm × 175 mm × 28.45 mm ( 13 in × 6.89 in × 1.12 in) |
| Weight | 233 g (0.51 lb) with batteries |
| Worklights | 2x LEDs |
| Certifications | UL, CE, FCC, IC, UKCA, CSAUS |
| Drop test | 3 m (9.8 ft) |
| IP Rating | IP54 dust-protected and splash-resistant |
| Operating Altitude | 2000 m (6562 ft) max |
| Operating Humidity | Maximum 80% up to 35°C (95°F) decreasing linearly to 60% at 45°C (113°F) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Safety Rating | CAT IV-600 V, CAT III-1000 V |
| Standards | Safety (UL): IEC 61010-1:2010, IEC 61010-2-032:2012 EMC (FCC): 47 CFR Part 15 Subpart B EMC (CE): EN IEC 61326-1:2021 EN IEC 61326-2-2:2021 EN 301 489-1 V2.2.3 (2019-11) EN 301 489-17 V3.2.4 (2020-09) RF: ETSI EN 300 328 V2.2.2 EN 62479:2010 EN 50663:2017 |
| Storage Humidity | 80% relative humidity (maximum) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) without batteries |
| Temperature Coefficient | 0.2 × specified accuracy/°C, <64.5°F (18°C), >82.4°F (28°C) |
