Accessories

Details: Category: Accessories

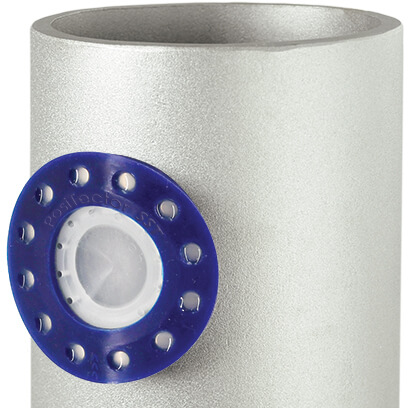

PosiPatch™ Reusable Bresle Test patch with Standard or Flexible magnetic ring — Reusable Bresle Test patch with Standard or Flexible magnetic ring

To measure salt contamination in line with ISO 8502-6,9—the Bresle Method

Magnetic ring attaches to steel with no residue to clean

Standard magnetic ring for flat surfaces and diameters > 1 m (40 in.)
Flexible magnetic ring for ID/OD diameters > 10 cm (4 in.)†

Automatic air removal through a watertight, air permeable membrane

No sharps, no needles! Safe, flexible dispensing tip mates with PosiPatch

Comparable price to latex patches

Reusable patent-pending PosiPatch saves time and money

Easy-to-use in any orientation

† Flexible magnetic ring minimum ID is 12 cm (4.5 in.)

Test Area*	1250mm²
Test Volume	2.5-3 ml
Patch Diameter	44.4 mm (1.75 in.)
Magnetic Ring Diameter	66.9 mm (2.6 in.)
Background Contamination	< 3mg/m²

Five PosiPatches are included with all PosiTector SST PosiPatch Kits. These kits include everything required to begin measuring with the innovative PosiPatch. While they are reusable, PosiPatches may eventually wear out or become dirty after extensive testing. Replacement PosiPatches are also available:

Name/Description	Order Code
PosiPatches (24) - for use with PosiTector SST PosiPatch Kits	SSTPATCHP24
PosiPatches (5) - for use with PosiTector SST PosiPatch Kits	SSTPATCHP5

Details: Category: Accessories

Non-Certified Metal Shim & Glass Zero Plate

Provides a quick accuracy check of the instrument

Allows the user to perform practice measurements

Consists of a 76 μm (3 mil) check shim and a glass zero plate

Labeled in both Metric and Imperial units

A metal shim and glass zero plate are included with every PosiTector SPG.

Name/Description	Order Code
Non-Certified Metal Shim & Glass Zero Plate	SPGZEROKIT

For use with the PosiTector SPG, PosiTector Inspection Kits

Details: Category: Accessories

For enhanced stability on 30 - 45 cm (12 - 18") OD pipes (for PosiTector SPG OS only).

Name/Description	Order Code
Large V-groove Adaptor	SPGOSPRBFOOT

For use with the PosiTector SPG OS

Details: Category: Accessories

For improved stability on 30 - 45 cm (12 - 18") OD pipes (PosiTector SPG OS only).

Name/Description	Order Code
Large V-groove Adaptor		SPGOSPRBFOOT

For use with the PosiTector SPG OS
